CONVERTERS
Transmitters MTWT

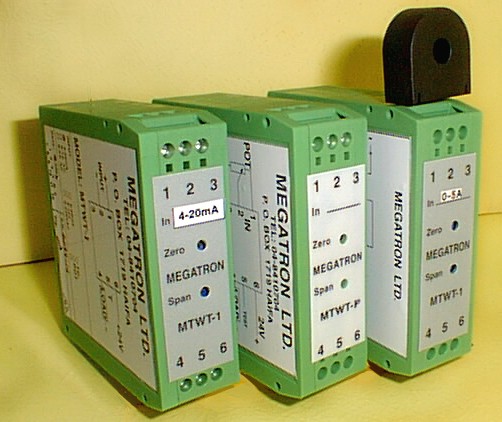

Large Image 		MEGATRON Two Wire Converters - MTWT-I (  MTWT )
A line of two wire Converters with galvanic isolated output convert Electrical input signals as:
  DC / AC Current, DC / AC Voltage, Resistance, RTD, TC's, Pulses etc. to 4 - 20 mA Output.
Model MTWT- I -T is for AC Current up to 10A ( conductor passes through current transformer).
MTWTI-LCD MEGATRON Two Wire Converter with Display - MTWTI-LCD
•    Input options : Temp. Sensors PT-100 / TC, DC Current / Voltage , Potentiometers.
•    3.5 digits LCD display.
•    Zero and Span calibration.
•    Compact , DIN rail-mounted enclosure.
MTWT-FRC Flow Sensor Converters - MTWT-FLS-H(C) (  MTWT-FLS-H(C) )
Converts pulses from flow sensor - Impeler (Magnetic Pickup).
•   Accuracy:   +0.5%F.S.
•   Output:   4-20mA passive ( 2 wire ) .
•   Power supply:   24 VDC.
•   Zero and Span calibration.
•   IP65 Enclosure
Transmitter MTWT-H-RTD Temperature Converter - MTWT-H-RTD (  MTWT-H-RTD )
PT-100 Temp Sensor and two wire transmitter to standard 4÷20mA output signal.
Two types of enclosures: Ball and Square box are available.
Converter MISCN
Large Image: MISCN-CAC

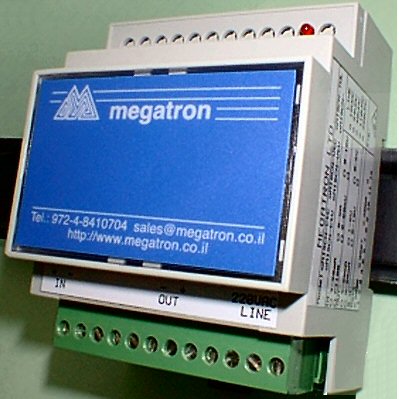

MISCN 		4 wire Signal Converters - MISCN (  MISCN )
Converts varies Input-Signals to standard Output-Signals (4÷20mA or 0÷10V).
•  Input: –  AC current (up to 5A) or voltage (up to 250 VAC).
–  DC current 4÷20mA or voltage 0÷10 V.
–  2 wire Conditioner / Transmitter (incl. 24VDC supply for the transmitter).
–  Resistance 2 wire or 3 wire.
–  Special models : Average of 2 inputs or inverse output.
• Accuracy : +0.1%F.S.(DC), + 0.2% F.S. for PT100, + 0.25% F.S.(AC)
"Absolute Value" and "Square Root Extractor" Signal Conditioners are available only with the old MISC.
Converter MISCN-24 4 wire Isolated Transmitter - MISCN 24 (  MISCN 24 )
•  Power:48 or 24 or 12 Vdc.
•  Input: DC current 4÷20mA or voltage 0÷300 Vdc or others.
•  Output:4÷20mA or 0÷10 Vdc or others.
• Galvanic isolation between input and output 1000Vdc
• Accuracy : +0.1%F.S.(DC)
Converter MISCN-D Dual Output Converter - MISCN-D (  MISCN-D(DI) )
converts one DC Input Signal to two galvanic Isolated Output Signals (4÷20mA or 0÷10V).
Two galvanic isolated Converters in one case - MISCN-DI.
Converter MTWT-I-D Two 2 wire Converters in one package - MTWT-I-D (  MTWT-I-D )
These units convert 2 electrical input signals to two Galvanic isolated output signals.
  • Inputs :  4-20mA / 0-10V DC
  • Outputs :   4-20mA passive
  • Power supply : 13 - 30 VDC
  • Zero and Span calibration for each transmitters
  • DIN rail-mounted enclosure
    • Transmitter MVAT 3 Wire Triple Converter - MVAFT, Dual Converter - MVAT (  MVA(F)T ) includes 3 (or 2) isolated channels converted:
       –  AC Current input (a conductor passes through current transformer) and
       –  Line Voltage input and
       –  Frequency of the same line voltage;
    or    – Three Phase AC Current
    •  Outputs: 4 ÷ 20mA passive.
    Model MVAT includes 2 isolated converters for Current and Voltage inputs.
    Converter MTCT MEGATRON Three AC Current Converters - MTCT (  MTCT )
    2 Wire, Isolated AC current converters in one package.
    MTCT includes three isolated transmitters converts AC current (1A or 5A)
    to 4-20mA DC output. Input conductors pass through a taroid coil.
    •    Input : AC current up to 10A ( conductor passes through a taroid coil).
    •    Accuracy : +0.5% F.S.
    •    Output : 4-20mA passive ( 2 wire )
    Converter MIFN
    MIFN

    Converter MADO
    MADO     		Current to Frequency Converter -MIFN (  MIFN )
    Converts Analog Signals: Current/Voltage DC , Temp. Sensor PT-100, to 6 Hz - 1 KHz pulses.
    The MIFN is used to connect an Analog Signal to a PLC without Analog Inputs. Mains 12 / 24 VDC.

    Converter MATP
    MATP
    MATP Converts Analog Signals: 4-20mA / 0-60mV DC etc..
    to pulses 0.01 Hz up to 1 KHz. 30 pulses per hour.
    The MATP is used for accumulation A/h or Volume units (m3, Galons etc..)
    by an external counter. Mains 110 / 220 VAC

    MADO Converts Analog Signals: 4-20mA DC / 0-60mV DC etc../ 0-5A AC
    to pulses 0.01 Hz up to 10 KHz (12/24V) and 4-20mA / 0-10V Analog Output.
    Option: 3.5 digits LCD Display. Mains VAC / VDC
    CONTROLLERS and DIGITAL PANEL METERS
    MDI Indicator / MIC Controller
    Large Image
    MDI Indicator / MIC Controller

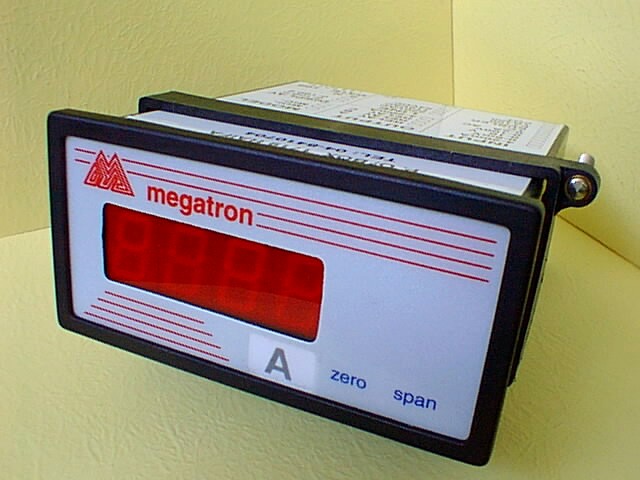

    MDI-H/MIC-H     		MEGATRON Digital Indicators / Controllers - MDI / MIC-1(2) (  MDI/MIC ),
    MDI-H/MIC-H     (  MDI-H / MIC-H)
    •   Digital Indicator MDI is used to display almost every electrical input-signal: voltage, current AC/DC, resistance, temperature sensors (PT-100 and thermocouples ), frequency, velocity, level and flow sensors etc…
     •   Digital Controller MIC-1 provides one and MIC-2 two C/O contacts. Set-point can be adjusted by one (two) multiturn potentiometers on the front panel.
     •   MDI and MIC can be ordered with several kinds of displays:
    –   MDI/MIC are with 0.5" LCD / LED display (3,5 digits);
    –   MDI-H1.0 has 1" supper red LED display (3 digits);
    –   MDI-H1.5 / MIC-H1.5 have 1.5" supper red LED display (3 digits).
     •   Two models MDI-4-CDC and MDI-4-VDC have 4.5 digits display (0-19999) LED, size 0.5".
     •   There are models for display Square root of input - MDI-SRE ( MDI-SRE ),
         and for two inputs Difference - MDI-DIF ( MDI-DIF ) etc.
    Controller MSCI-4 4 Relays ON/OFF Controllers - MSCI-4 ( MSCI-4 )
    •   Current 4-20mA or Voltage 0-10V DC or another
    •    Accuracy: +0.25%F.S
    •   Output: 4 Relay - C/O Contacts 220V/5A.
    •   Display: input / set-point values - 3 1/2 digits LCD 0.5"
    •   Power supply: 220 VAC or 110 VAC or 24 VDC / VAC or 12VDC.
    •   Potentiometers for setting two set-poits HI and LOW for each of 4 output relays
    Controller MSCI-LCD ON/OFF Controllers with display - MSCI-LCD ( MSCI-LCD )
    •   Input:–   Current or Voltage AC and DC or
    –  Resistance 3 wire.
    •   Accuracy : +0.25%F.S and +0.5% for AC measurements.
    •   Output: 1 C/O Contact 220V/5A.
    •   Power supply: 220 VAC or 110 VAC or 24 VDC.
    •   Zero and Span Potentiometers for display range calibration and Potent. Al for Set point.
    In addition to MSCI-LCD there are 2 models:
    2 output relays and DC input signal - MSCI-2-LCD.
    1 output relay and PT100 Temperature sensor input - MSCI-RTD.
    MCL
    MEGATRON Level Controller for 2 or 3 Electrodes - MCL300N.
    •   Use for Pumps operations or Alarms.
    •   Internal Switch to select Filling or Emptying.
    •   Electrodes:
        Common ( vassal body, if it's metal ) and ON + OFF Electrodes.
    •   On front Panel 2 LED's and Sensitivity Adj.Pot.

    SIMULATORS

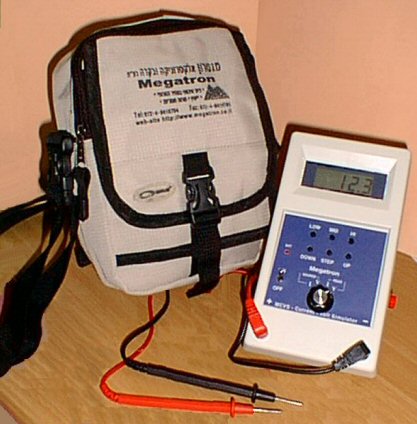

    MEGATRON Current and Voltage Simulator - MCVS ( MCVS )
    Source of 0-20mA / 0-10V,
    Used at process control systems for testing Control Elements.
    The MCVS has 2 operation modes:
    •   Source: –   Current /I/: 0-20mA [3 fixed values 4, 12, 20mA]
    –   Voltage /V/: 0 - 10 V [fixed values 2, 6, 10 V]
    •   Measure:   Current 0 - 20 mA / Voltage 0-10 V DC     		Simulator MCVS
    Large Image

    RTD and ANALOG  MULTIPLEXERS
    Multiplexer MUX-RTD

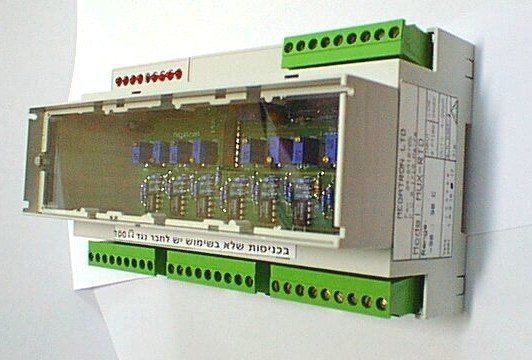

    Large Image     		MEGATRON RTD Multiplexer (for PLC) - MUX-RTD  (  MUX-RTD )
    enables to connect 8 temperature PT-100 sensors (3 wire) to one PLC analog input.
    •   The input is selected by 3 binary address lines:
    –   Binary signal: 0V - [0]; +24V - [1].
    •   Output: active 4-20mA.
    •   Power supply: 24 ±15%V DC
    Multiplexer MUX-CDC

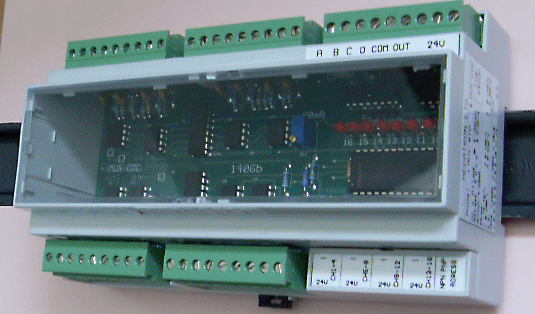

    Large Image     		Multiplexer MUX8-CDC MEGATRON Analog Multiplexer (for PLC) -
    MUX-CDC       (  MUX-CDC ) /   MUX8-CDC
    enables to connect 8(16) / 8 active or passive analog inputs (4-20mA or 0-10V) to one PLC analog input.
    •   The input is selected by 4 hexadecimal address lines [ 3 - for 8 inputs]. Option: inverse logic
    •   8/16 analog inputs 4-20mA (active or passive) are protected against over current.

    TIMERS
    Timer MMFT MEGATRON Multi-Function Timer - MMFT  (  MMFT )
    Enables selection of time ranges and different modes of operation:
    A - on delay,   B -" pulse, single-shot" (time delay),   D -on delay and "pulse"(off delay),
    F- Recycling timer (flasher relay).
    Timer RCD-8
    RCD-8     		DIN-rail mounting Recyclic Timer - RCD
    Programmable Recyclic Timer - RCN
    RCD-4 / RCN-4 operate up to 4 loads and
    RCD-8 / RCN-8 - up to 8 at recycled mode.
    RCD-16 / RC-16 - up to 16 loads
    •   Output : 4 / 8 / 16 "Electronic Contacts",
    1A / 230 VAC or 24 VDC.
    •   Power supply : 110 / 220VAC or 24 VDC
    •   Repeatability : +1% under fixed condition.
    •   Display : 4/8/16 LED-s indicate active output.

    (  RCD-4/8 / RCD-16)     (  RCN-4/8 / RC-16)     		Timer RCD-16
    RCD-16

    ANNUNCIATORS

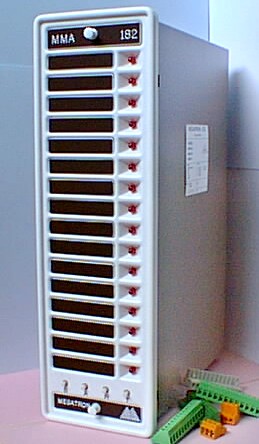

    Annunciator MMA182
    Large Image     		Annunciator MMA190 MEGATRON Microprocessor Annunciators:
    MMA-182     - 16 channels monitor (  MMA-182 )
    and MMA-190 - 8 channels monitor (  MMA-190 ) •   Inputs can be either dry contact or voltage up to 220V.
    •   Outputs: LEDs for every channel ,
    •   75 db Buzzer and Relay contact for External Horn.
    MEGATRON Alarm Modul - MAM-10 ( MAM-5 )
    •   10 or 5 channels Annunciators.
    •   Inputs: 5 or 10 dry contacts.
    •   Outputs: 5 or 10 outputs for external lamps to indicate faulty channel.
       LEDs for each channel and Relay contact for External Horn.     		Annunciators MAM-10
    PROTECTION UNITS

    Set-Point MSP, MSP-T MEGATRON Set-Point units - MSP  (  MSP ) for monitoring or On/Off controls.
    •   Input:    Current 4-20 mA DC or Voltage 0-1 VDC;
    •   Output: N.O. or N.C. dry contact 3 A / 220 VAC.
    Model with AC Current (0-5 A) input (a conductor passes through current transformer)- MSP-CAC
    Model with PTC Thermistors input - Temperature Alarm - MSP-T  (  MSP-T ).

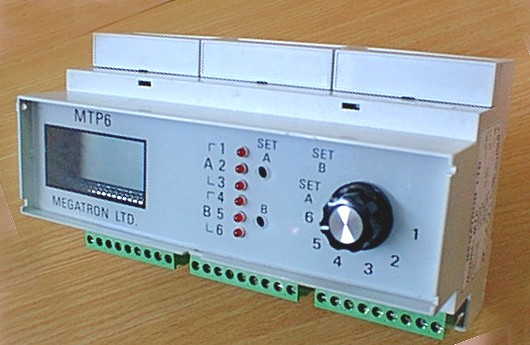

    MEGATRON Temperature Protection unit - MTP-6 (  MTP-6 ) - protecting modules for overheating electrical motors.
    MTP- 6   -  6 inputs and two output relays (Alarm and Trip).
    MTP- 3R  - 3 inputs and two output relays.
    •   Inputs. option:  RTD or 4-20 mA or 0-10V
    •   Power supply: 110/220 VAC, 24V AC/DC.
    •   Output: 2 relays 5A/220 VAC
    •   Display: 3.5 digits LCD size 0.5" and 6 red LED (indicate input deviation)
    		MTP6
    Large Image
    Panel mounting Temperature Protection unit - MTP- 5P (3P- R) (  MTP-5P)
    •   Inputs. option:  4-20 mA. •   Display : 3.5 digits LCD
    •   Power supply : 220 VAC +10% (option:110VAC, 24V AC/DC).
    •   Size: W 72 x H 144 x D 150 mm, panel cutout 67 x 139 mm.
        A metal holder is available for wall maunting .
    MTP -3P-R - 3 RTD Sensors inserted in motor winding
    •   Output : 2 relays 5A/220 VAC for ALARM and TRIP.
    MTP -5P  - 5 RTD Sensors (winding, front and rear bearings).
    •   Output: 2 relays for ALARMs.
    		 MTP-5
    Detector MVDD MEGATRON Voltage Deviation Detector - MVDD protects Electronic Instruments.
    –   Input voltage (power) is switched to output - MVDD-P.
    –   Output is relay's contact 220VAC / 5A - MVDD-R.
    –   Protection for Battery loading & unloading - MVDD-B.(  MVDD-B)
    MGD,MGDF MEGATRON Protection units - MGDF, MGD
    –   MGD protects electronic equipment against high voltage ( spikes ).
    •   Includes Gas Diodes and Varistors
    –   MGDF includes 2 fuses and Varistors.
    •   Fuses: 160mA.
    –   M1DO provides a Galvanic Isolatate On /Off signal.
    •   Output current max: 10mA.
    MEGATRON Power Supplies - MPS-2, MPS-120, MPS12-6 ( MPS )
    3 models of power supplies:
    •   MPS-120: input 115/230 Vac, output 24±0.5 Vdc / 100mA (for 4 passive converters 4-20mA)
    •   MPS-2: input 115/230 Vac, output 24±0.5 Vdc / 2 x 80mA (each one) with isolation between input/output1 /output2
    •   MPS12-6: input 12±1 Vdc, output 6±0.25 Vdc / 500mA (without isolation between input/output)
    Power Supplies:MPS120,MPS12-6 / MPS-2
    MPS120,MPS12-6MPS-2
